Located one mile back from the cliff top SE of Lands End, this is the view to the SW and long path to ZL / VK. It's a superb radio site all round, with the horizon only obstructed by a few degrees to N/NE.

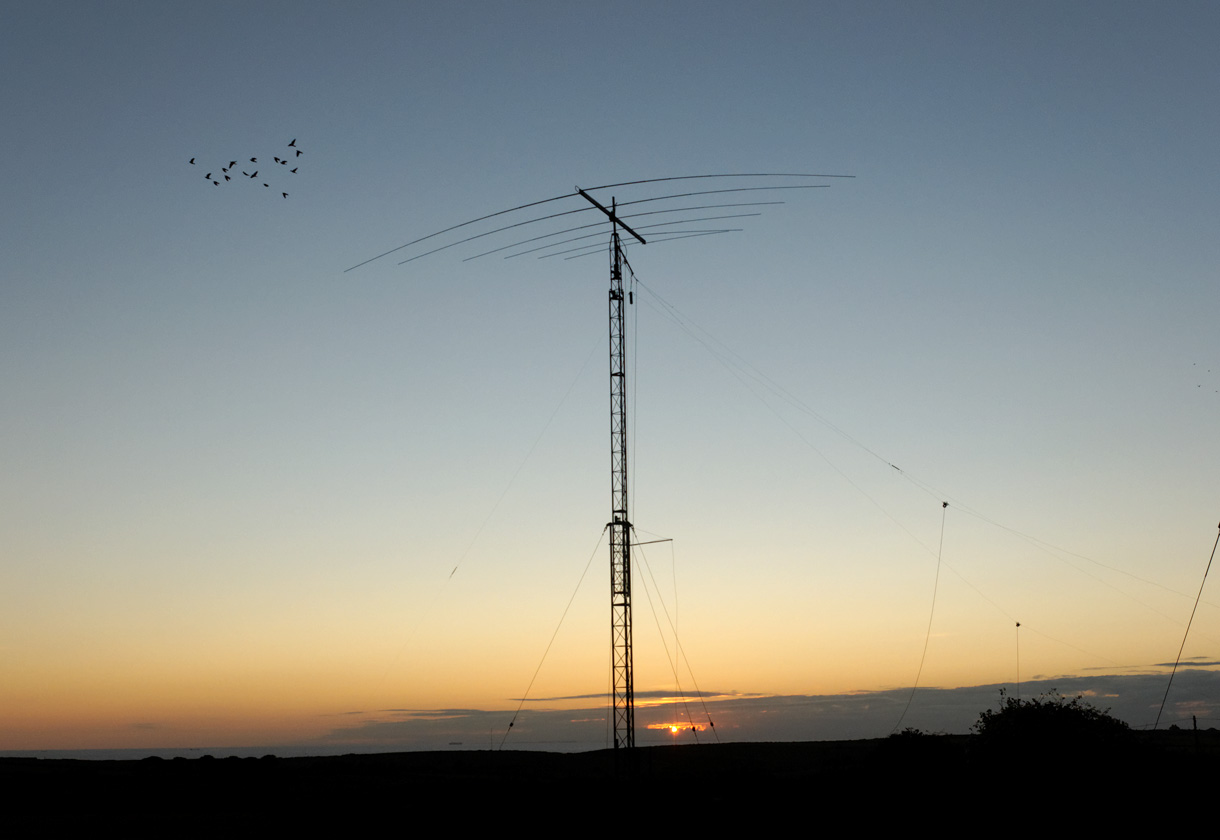

The mast is 40 ft HD Versatower and carries antennas for all 9 HF bands. 160m is a 38ft top loaded Tee hung off the side of the mast. Mast is shunt fed for 80m. 40m & 30m are sloping 1/4wave wires from near the top of mast to head height with 2 radials on each. Since August 2011 20m > 10m bands are covered by a Tennadyne T6.

Low bands Rx aerial is a K9AY 350ft away.

Rain static noise has plagued me all my working life as well as on the Ham bands. I've long held the view that rain static on a receiving aerial can be alleviated by using PVC covered wire - with the proviso that there are no metal structures within the immediate vicinity - its no good hanging pvc covered wire off a steel mast for instance.

An excellent example occurred on 11th March 2018 during the close passage of a thunderstorm. While working on 14Mhz using my aluminium hf beam. band noise increased from s1 to s9+, while my pcv covered wire loops at 150m distant are noise free.On the basis that a picture is worth a thousand words here is a 25sec Youtube video

Another good example during heavy rain without
lightning - 80m 27Aug20 - noise is s9+ on 80m shunt fed mast and non existant on K9AY rx antenna 150m distant.
Audio file here


I obtained the call sign G3XRJ in 1965 while studying to be a Radio Officer in the Merchant Navy. Joined Marconi Marine in 1966 and sailed on Shell Tankers
Hemifusus/MSDF Hemidonax/GPZW Hinea/GTXL Holospira/GVFK and Helisoma/GVST
Came ashore in 1970 and worked at Portishead Radio until 1974 when I moved back to my home location to work at Lands End Radio/GLD until 1998.
Amateur radio interest has always centred on 80m DX while keeping an ear on 160/40m, CW & SSB.

Countries Visited 46 and Countries contacted from home station :-
